TOYOTA Hiace

You can show your car in different styles.

Reshaping Possibilities

HIACE

Gallery

Specification

✓

Specification
Engine	1KD-FTV 4 Cylinders, L Type with 16-Valve DOHC
Chassis	Double Wishbone with Stabilizer Bar (Front), Rigid Axle, Leaf Spring (Rear) with Ventilated Discs (Front), Drum (Rear) Brakes
Dimensions	4,695 x 1,695 x 1,980 mm
Seating Capacity	3 Pax
SRP	₱ 1,195,000 + Freight Charges
Full Specs

Specification
Engine	1KD-FTV 4 Cylinders, L Type with 16-Valve DOHC
Chassis	Double Wishbone with Stabilizer Bar (Front), Rigid Axle, Leaf Spring (Rear) with Ventilated Discs (Front), Drum (Rear) Brakes
Dimensions	4,695 x 1,695 x 1,980 mm
Seating Capacity	15 Pax
SRP	₱ 1,396,000 + Freight Charges
Full Specs

Specification
Engine	4-Cylinder, In-Line, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler
Suspension	Double Wishbone (Front), Multi-Link (Rear)
Brakes	Ventilated Disc (Front and Rear)
Fuel	Diesel
SRP	₱ 1,516,000 + Freight Charges
Full Specs

Toyota hiaceDetails Download Brochure

Dimension and Weight
Overall Dimension (mm)	4695 x 1695 x 1980
Wheelbase (mm)	2570
Tread Front / Rear	Fr: 1470 / Rr: 1465
Min. Turning Radius (m)	5
Seating Capacity	3

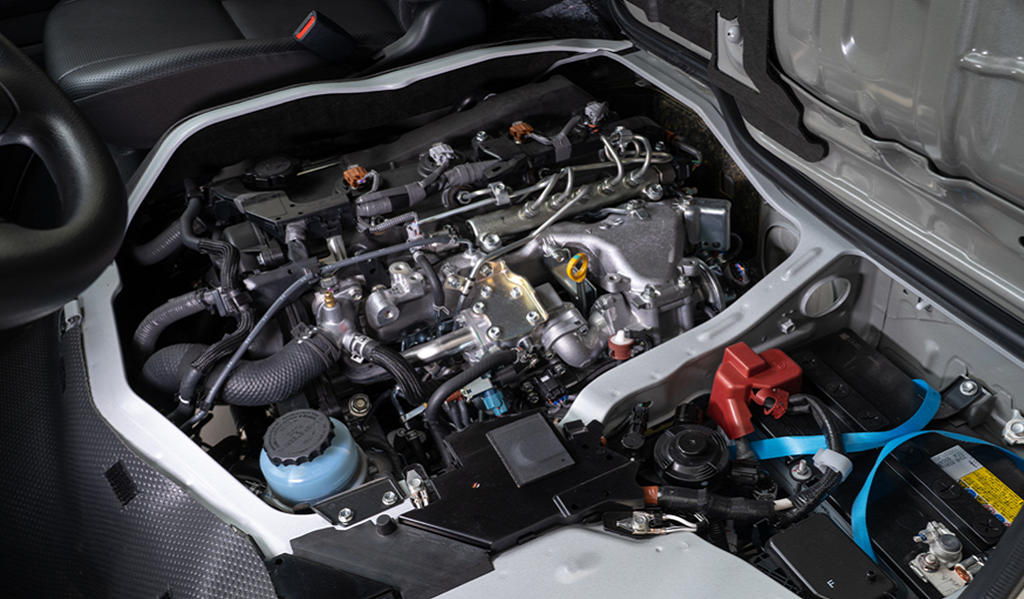

ENGINE
Model	1KD-FTV
Engine Type	4-Cylinder L Type
Engine Displacement (cc)	2982
Maximum Output (ps/rpm)	136 / 3400
Maximum Torque (Nm/rpm)	300 / 1200 - 2400
Fuel Type	Diesel
Fuel Capacity (L)	70
Transmission
Transmission	5-Speed Manual

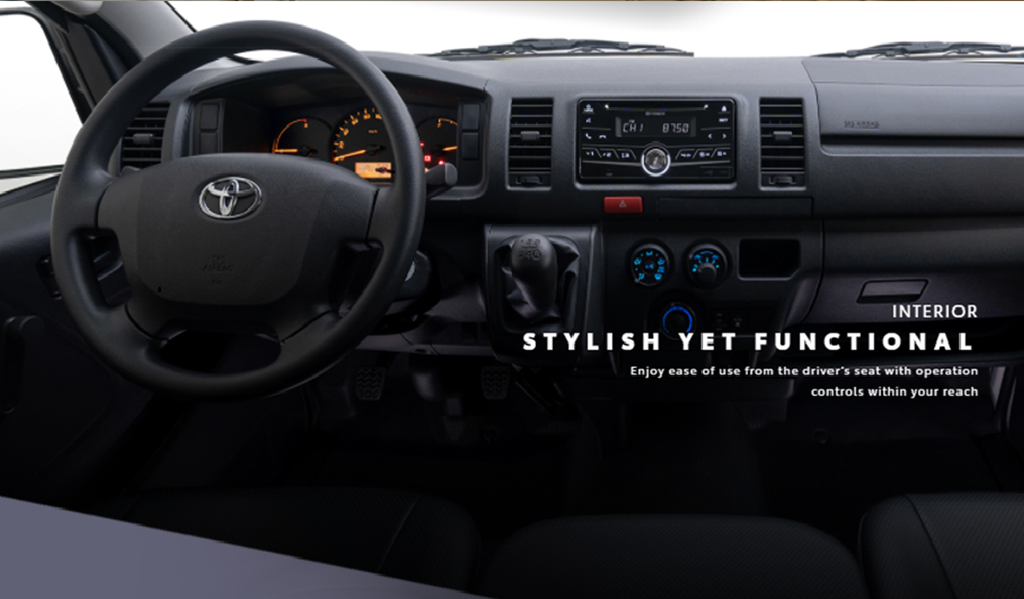

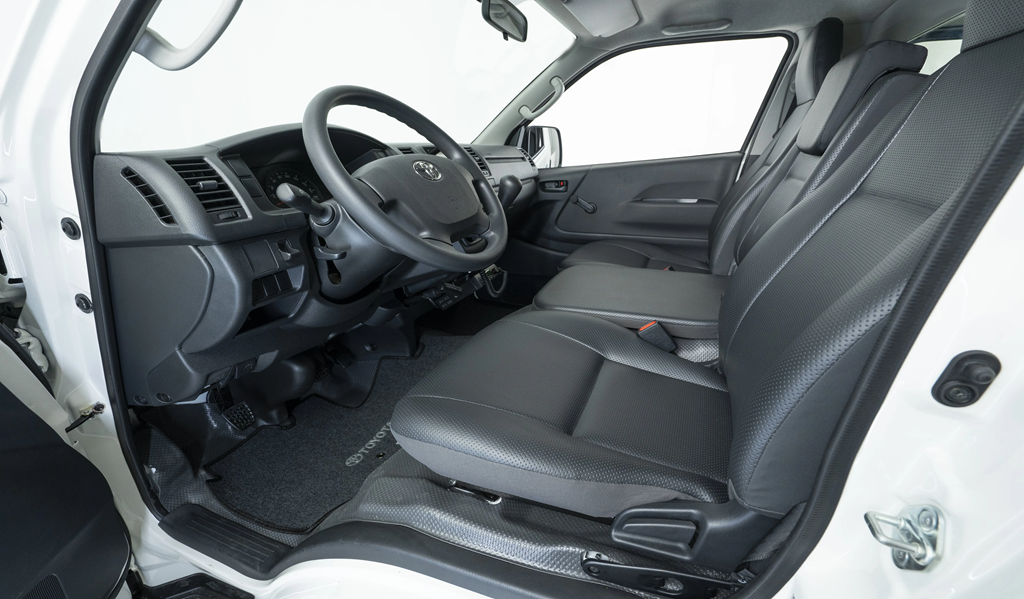

Interior
Seat Material	Vinyl
Front Seat Type & Adjustment	Driver (Slide/Recline), Passenger (Recline), Center (Fixed)
Rear #1 Passenger Seat Type & Adjustment	Bench Type / 2 + Jumpseat
Rear #2 Passenger Seat Type & Adjustment	Bench Type / 2 + Jumpseat
Steering Type	Rack and Pinion with Power Assist
Steering Column	4-Stroke, Urethane with Chrome Logo / Tilt-Adjustable
Steering Wheel Material	4-Spoke, Urethane with Chrome Logo
Steering Wheel Switch	Tilt-Adjustable
Glove Box	With
Front Personal Lamp	Without / Front + Rear + Back Door with Switch
Sunvisor	Driver + Passenger
Rear View Mirror	Day and Night
Multi-Information Display (MID)	With
Exterior
Headlamps	Multi-Reflector, Halogen with Integrated Clearance and Turn Lamp
Front Windshield Wiper	Intermittent
Front Bumper	Black
Outside Rear View Mirror	Black
Front Grille	Silver
Door Outside Handle	Black
Antenna	Pillar-Mounted
Outer Mirrors	Black
Function
Door Ajar Warning	With
Airconditioning System	Dual, Manual Controls

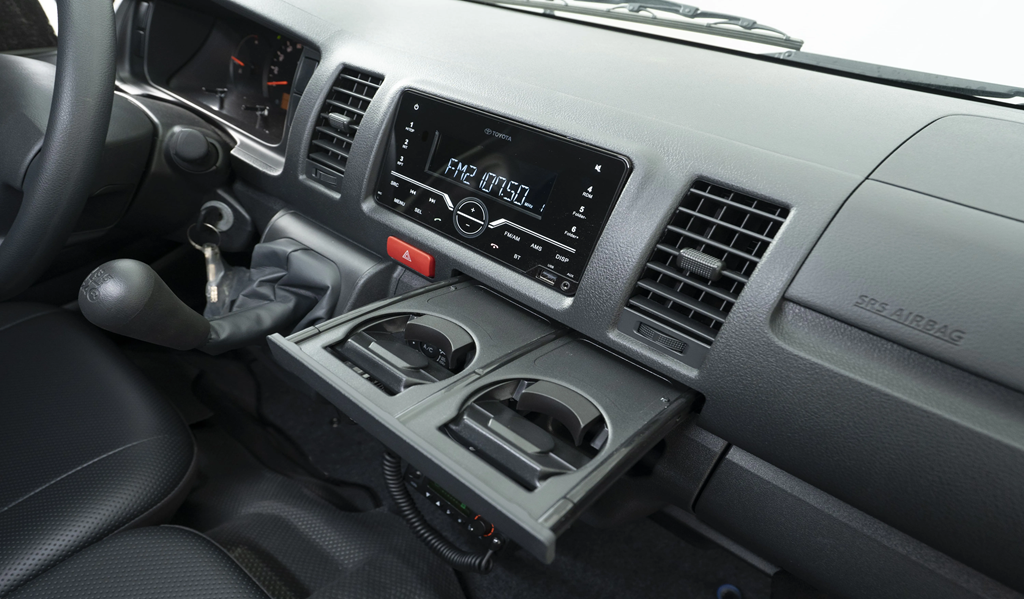

Audio System Type	2-DIN / Tuner / MP3 / Bluetooth / AUX / USB, 2 Speakers
Cupholder	Instrument Panel (2 pcs.)
Chassis
Front/Rear Brake	Ventilated Discs / Drum
Tires	195R15C
Wheels (Size)	15"
Wheels	15" Steel
Suspension	Double Wishbone with Stabilizer Bar / Rigid Axle, Leaf Spring
Safety and Security
SRS Airbags	Dual (Driver + Passenger)
Front Seatbelts	3 pt. ELR (2 pcs.) + 2 pt. NR (1 pc.) + D+P Pretensioner
Others
Bore	92
Stroke	103
Front Bumper Skirt	Black
Rear Bumper Skirt	Black
Conversion Package Assist Grip	With

Dimension and Weight
Overall Dimension (mm)	4695 x 1695 x 1980
Wheelbase (mm)	2570
Tread Front / Rear	Fr: 1470 / Rr: 1465
Min. Turning Radius (m)	5
Seating Capacity	15
ENGINE
Model	1KD-FTV
Engine Type	4-Cylinder L Type
Engine Displacement (cc)	2982
Maximum Output (ps/rpm)	136 / 3400
Maximum Torque (Nm/rpm)	300 / 1200 - 2400
Fuel Type	Diesel
Fuel Capacity (L)	70
Transmission
Transmission	5-Speed Manual
Interior
Seat Material	Vinyl

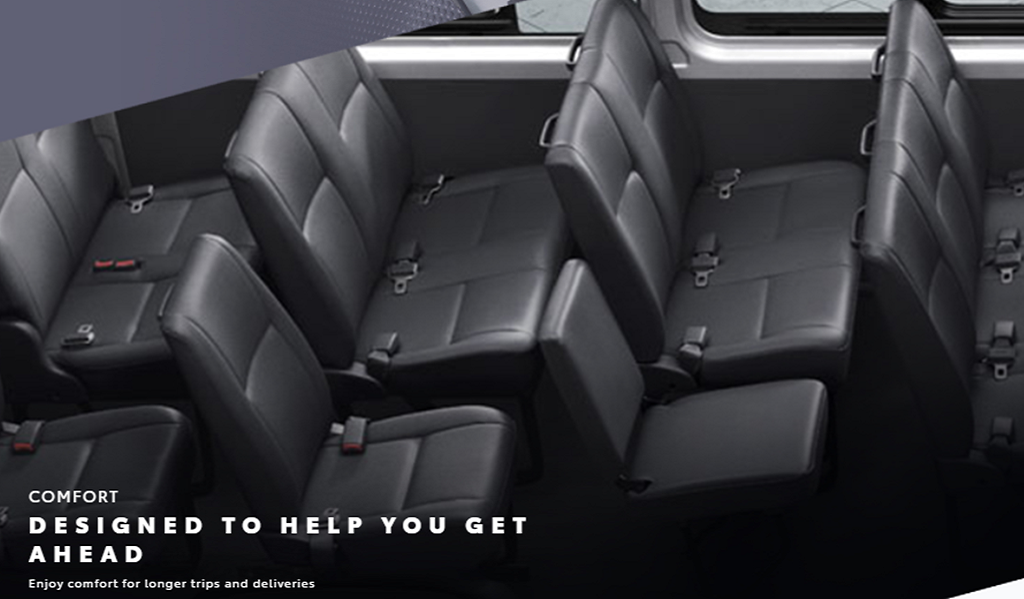

Front Seat Type & Adjustment	Driver (Slide/Recline), Passenger (Recline), Center (Fixed)
Rear #1 Passenger Seat Type & Adjustment	Bench Type / 2 + Jumpseat
Rear #2 Passenger Seat Type & Adjustment	Bench Type / 2 + Jumpseat
Steering Type	Rack and Pinion with Power Assist
Steering Column	4-Stroke, Urethane with Chrome Logo / Tilt-Adjustable
Steering Wheel Material	4-Spoke, Urethane with Chrome Logo
Steering Wheel Switch	Tilt-Adjustable
Glove Box	With
Front Personal Lamp	Without / Front + Rear + Back Door with Switch
Sunvisor	Driver + Passenger
Rear View Mirror	Day and Night
Multi-Information Display (MID)	With
Exterior
Headlamps	Multi-Reflector, Halogen with Integrated Clearance and Turn Lamp
Front Windshield Wiper	Intermittent
Front Bumper	Black
Outside Rear View Mirror	Black
Front Grille	Silver
Door Outside Handle	Black
Antenna	Pillar-Mounted
Outer Mirrors	Black
Function
Door Ajar Warning	With
Airconditioning System	Dual, Manual Controls
Audio System Type	2-DIN / Tuner / MP3 / Bluetooth / AUX / USB, 2 Speakers
Cupholder	Instrument Panel (2 pcs.)
Chassis
Front/Rear Brake	Ventilated Discs / Drum
Tires	195R15C
Wheels (Size)	15"
Wheels	15" Steel
Suspension	Double Wishbone with Stabilizer Bar / Rigid Axle, Leaf Spring
Safety and Security
SRS Airbags	Dual (Driver + Passenger)
Front Seatbelts	3 pt. ELR (2 pcs.) + 2 pt. NR (1 pc.) + D+P Pretensioner
Rear Seatbelts	2 pt. NR (11 pcs.)
Others
Bore	92
Stroke	103
Front Bumper Skirt	Black
Rear Bumper Skirt	Black
Conversion Package Assist Grip	With

Dimension and Weight
Overall Dimension (mm)	4695 x 1695 x 2205
Wheelbase (mm)	2570
Tread Front / Rear	Fr: 1470 / Rr: 1465
Min. Turning Radius (m)	5
Seating Capacity	3
ENGINE
Model	1KD-FTV
Engine Type	4-Cylinder L Type
Engine Displacement (cc)	2982
Maximum Output (ps/rpm)	136 / 3400
Maximum Torque (Nm/rpm)	300 / 1200 - 2400
Fuel Type	Diesel
Fuel Capacity (L)	70
Transmission
Transmission	5-Speed Manual
Power Transmission	5-Speed Manual (Dash-Mounted)
Interior
Seat Material	Vinyl
Front Seat Type & Adjustment	Driver (Slide/Recline), Passenger (Recline), Center (Fixed)
Rear #1 Passenger Seat Type & Adjustment	Bench Type / 2 + Jumpseat
Rear #2 Passenger Seat Type & Adjustment	Bench Type / 2 + Jumpseat
Steering Type	Rack and Pinion with Power Assist
Steering Wheel Material	4-Spoke, Urethane with Chrome Logo
Steering Wheel Switch	Tilt-Adjustable
Glove Box	With
Front Personal Lamp	Without / Front + Rear + Back Door with Switch
Sunvisor	Driver + Passenger
Rear View Mirror	Day and Night
Multi-Information Display (MID)	With
Exterior
Headlamps	Multi-Reflector, Halogen with Integrated Clearance and Turn Lamp
Front Windshield Wiper	Intermittent
Front Bumper	Black
Outside Rear View Mirror	Black
Front Grille	Silver
Door Outside Handle	Black
Antenna	Pillar-Mounted
Function
Door Ajar Warning	With
Airconditioning System	Dual, Manual Controls
Audio System Type	2-DIN / Tuner / MP3 / Bluetooth / AUX / USB, 2 Speakers
Cupholder	Instrument Panel (2 pcs.)
Chassis
Front/Rear Brake	Ventilated Discs / Drum
Tires	195R15C
Wheels (Size)	6JJ x 15"
Wheels	15" Steel
Suspension	Double Wishbone with Stabilizer Bar / Rigid Axle, Leaf Spring
Safety and Security
SRS Airbags	Dual (Driver + Passenger)
Front Seatbelts	3 pt. ELR (2 pcs.) + 2 pt. NR (1 pc.) + D+P Pretensioner
Rear Seatbelts	2 pt. NR

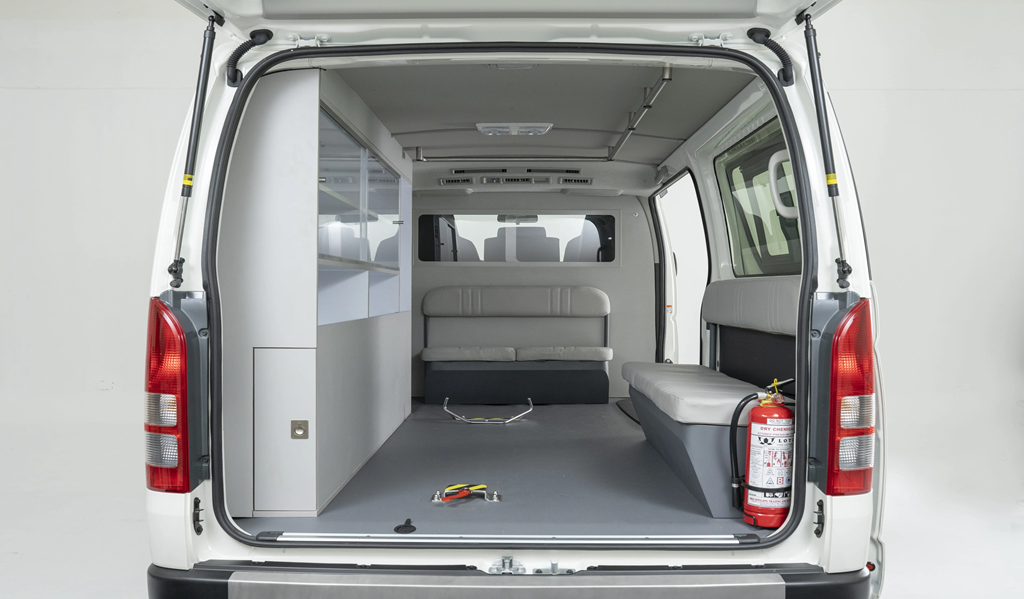

Others / Conversion
Bore	92
Stroke	103
Rear Conversion Grab Rails	With

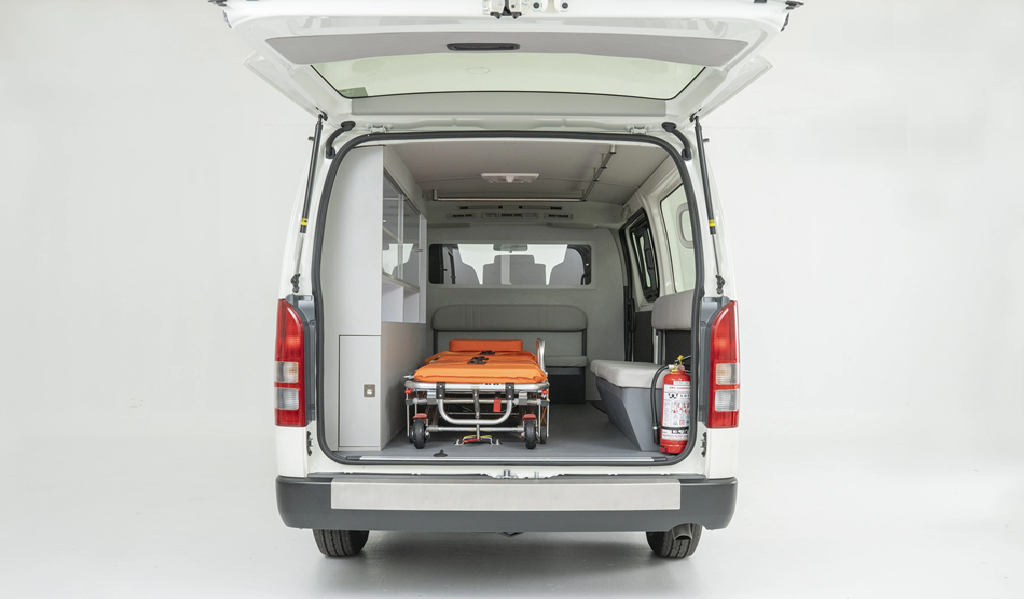

Stretcher	With
Fire Extinguisher	With
Interior Light	With
Assist Grip	With
Rear Bumper Protector	With
